These
specifications apply to a standard model only.
Modifications may be made to suit.
Click here to print this page
|
Mercury

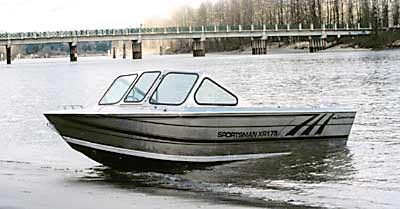

Sport Jet 175 XR2 |
Incl.
pump & powerhead |
| Length
|
17.5' |
| Beam |
7' |
| Bottom
Width (3/8"
center section of 5086* in a Delta V pad.
Remaining
bottom is 3/16") |
6' |
| Bottom
Angle |
8
- 16 degrees |
| Reverse
chine |
Full
length |
| Ribbed
sides - 1/8" 5052 |
Full
length & 28" high |
| Deck |
Checkerplate |
| Walk
thru windshield |
3
mm safety glass |
| Side
trays |
Full
length |
| Dash
with step & Glove box |
|
| Infloor
welded al. fuel tank (Coast Guard approved w/water separator/fuel
filter) |
30
gallons |
| Foam
flotation |
|
| Flooring
is fiberglassed with marine vinyl decking |
*
Colour = customer choice |
| Marine
carpeting on interior sides |
*
Colour = customer choice |
| Two
sleeper seats or two pedestal seats |
*
Colour = customer choice |
| Running
lights |
|
| Decals
& Standard polish |
|
| Front
and rear railings |
|
| Deck
cleats |
|
| Jet
Guard & Swim Grid |
|
Marine
grade aluminum that is 40% stronger
Exterior
bottom has four lifting strikes on it for better handling and more lift.
Inside bottom has two T bar on each side and
3/16" formed main stringers.
|
